Automatic Corrugated Board Cutting Machine Servo Type Spiral Knife Cut Off
Functions and characteristics:
1. With single or double layers structure for choice.
2. Colorful touch screen display all kinds of production information which can be checked, revised ,added or canceled.
3. Special structural design, particularly well mechanical strength wall and base.
4. Special high-speed helical cutter for cutting cardboard smooth without burr.
5. Blade adjustment and changing design, fast and convenient.
6. Drive box adopts oil pump type high precision gear drive with low noise, steady.
7. AC servo motor driven cutting, high efficiency, high precision.
8. Transport out of paper using an independent variable frequency motor drive, and line speed synchronization.
9. AC servo control system, energy saving 30%.
10. Computers can store multiple sets of orders,changing orders automatically with non-stop, and to achieve computing network to facilitate the production management.
11. Cutting length range ;500-9999mm; Cutting accuracy; ± 1mm.
12. The speed : 5０－130m/min
13. Valid breadth:1400mm-2500mm.
14. Designed and manufactured according to CE standards.
Motor:

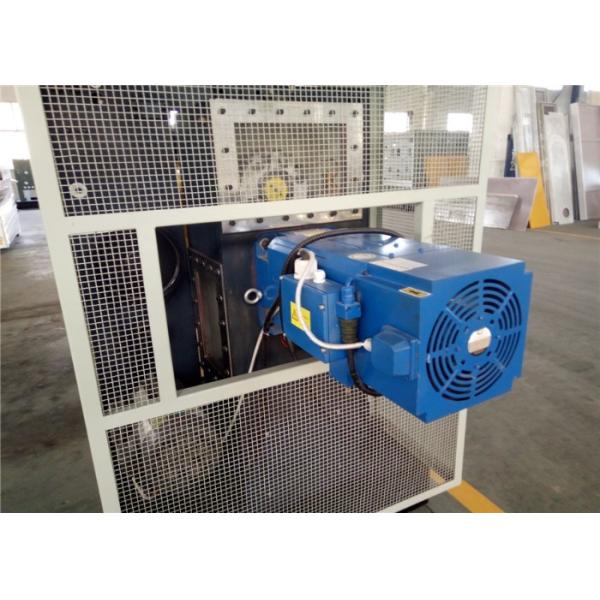

1. Main motor:12.5kw Ac synchronous servo
2. Feeder motor:3 kw(Frequency control the speed)
3. Lubricating oil pump motor:0.25kw
| | SMHQ-LX-1600 | SMHQ-LX-1800 |
| Effective working width | 1600mm | 1800mm |
| Wallboard width | 1800mm | 2000mm |
| Design speed | 130m/min | 130m/min |
| Economic speed | 90~110m/min | 90~110m/min |
| Machine size | 3300x1300x1560mm | 3500x1300x1560mm |
| Operation cabinet size | 1000x600x1400mm | 1000x600x1400mm |
